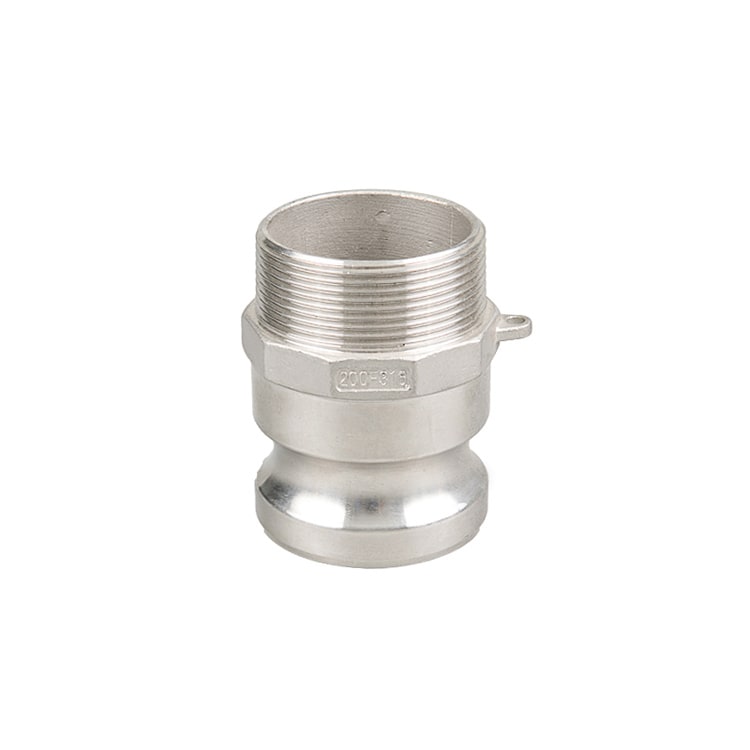

Type F Stainless Steel Camlock

The Type F 316 stainless steel camlock is a male camlock coupler with a male BSP thread — the premium option for connecting a female BSP socket or threaded port to a female camlock hose assembly. The male BSP thread screws into a female BSP port on a pump, tank, valve, or fitting, while the male camlock end accepts any standard female camlock coupling.

316 stainless steel camlocks provide superior corrosion resistance to aluminium and polypropylene — suited to food, dairy, marine, and chemical processing applications where hygiene, longevity, or aggressive chemical environments are a factor. Available in 19mm to 51mm (3/4" to 2").

Also available in aluminium and polypropylene for general duty and chemical applications.

Specification

• Material — 316 stainless steel.
• Seals — No internal seal (male camlock; seal is in the female half).
• Thread — Male BSP, parallel thread.
• Sizes — 19mm to 51mm (3/4" to 2").
• Compatible with all standard camlock female couplings in the same size.
