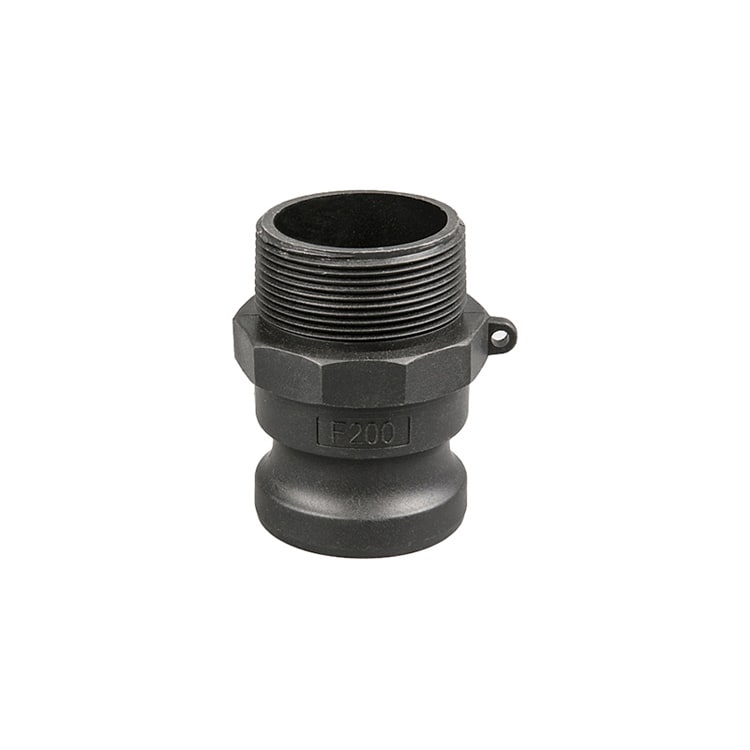

Type F Polypropylene Camlock

Type F Polypropylene Camlock is a male camlock coupler with a male BSP thread — the economical option for connecting a BSP-threaded port to a female camlock hose assembly

The Type F polypropylene camlock is a male camlock coupler with a male BSP thread — used to connect a female BSP socket or threaded port to a female camlock hose assembly. The male BSP thread screws into a female BSP port on a pump, tank, valve, or fitting, while the male camlock end accepts any standard female camlock coupling.

Polypropylene camlocks are lightweight, corrosion resistant, and well suited to suction, low pressure water, and chemical applications where aluminium or stainless steel is not required. Available in 12mm to 102mm (1/2" to 4").

Available in aluminium and 316 stainless steel for more demanding applications.

Specification

• Material — Polypropylene.
• Seals — No internal seal (male camlock; seal is in the female half).
• Thread — Male BSP, parallel thread.
• Sizes — 12mm to 102mm (1/2" to 4").
• Compatible with all standard camlock female couplings in the same size.
