Red Multi-Purpose Hose

Red Multi-Purpose Rubber Hose is a high quality nitrile rubber pressure hose — a highly flexible, kink-resistant general purpose hose for compressed air, water, petroleum products, and washdown

Red Multi-Purpose Rubber Hose is a braided nitrile rubber hose with a smooth black nitrile inner tube and a distinctive red cover. It is non-conductive (no static wire) and highly flexible — suitable for compressed air, water, petroleum products, and a wide range of other fluids in general industrial and agricultural applications. Rated to 20 bar working pressure across the full size range. Available in 6mm to 51mm (1/4" to 2"). Service temperature range -20°C to +95°C. For a conductive alternative, see the Black Multi-Purpose Rubber Hose.

Features

• Nitrile rubber inner tube — good resistance to petroleum products, oil, and common industrial fluids.
• Highly flexible and kink resistant — suitable for applications requiring frequent movement and routing.
• Non-conductive (no static wire) — general purpose hose for non-static-sensitive applications.
• 20 bar working pressure across the full size range, 6mm to 51mm.
• Service temperature range: -20°C to +95°C.

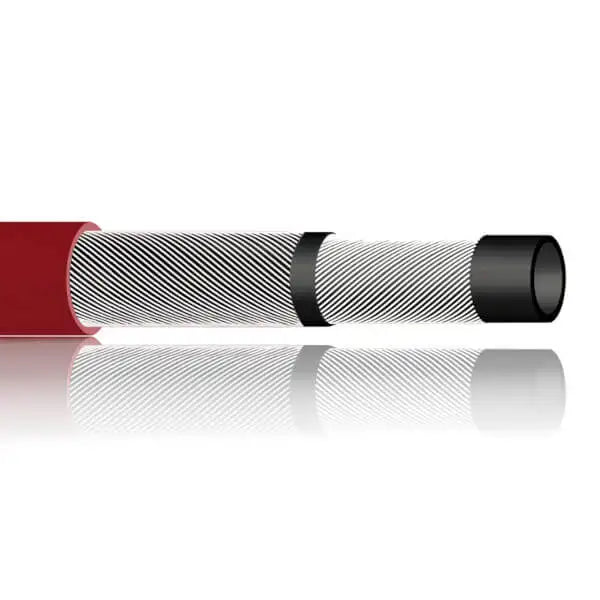

Construction

• Tube — Smooth black nitrile rubber.
• Reinforcement — High tensile textile braid.
• Cover — Smooth red rubber, abrasion and weather resistant.

Applications

• Compressed air lines — workshop, factory, and portable compressors.
• Water delivery and washdown.
• Petroleum, fuel, and oil transfer at low to medium pressure.
• Hot water transfer (non-potable).
• Spraying applications.
• General industrial fluid transfer.

General Specifications

• Service temperature range: -20°C to +95°C
• Maximum working pressure: 20 bar (all sizes)
• Safety factor: 3:1

Technical data subject to change without notice.
