Black Multi-Purpose Hose

Black Multi-Purpose Rubber Hose is a high quality nitrile rubber pressure hose with a conductive tube — suited for compressed air, water, oil, and petroleum product applications

Black Multi-Purpose Rubber Hose is a braided nitrile rubber hose with a conductive tube that dissipates static electricity. 10 bar working pressure and 4:1 safety factor. The nitrile rubber construction provides good resistance to oil, petroleum products, and a wide range of chemicals. The conductive tube makes it suitable for fuel and petroleum delivery lines where static charge dissipation is required. Available in 10mm to 25mm (3/8" to 1"). For a higher pressure multi-purpose rubber hose, see the Red Multi-Purpose Rubber Hose.

Features

• Nitrile rubber tube — good resistance to petroleum products, oil, and a range of industrial fluids.
• Conductive tube — dissipates static electricity; suited to petroleum product handling where static control is required.
• Braided textile reinforcement — 10 bar working pressure, 4:1 safety factor.
• Service temperature range: -40°C to +80°C.

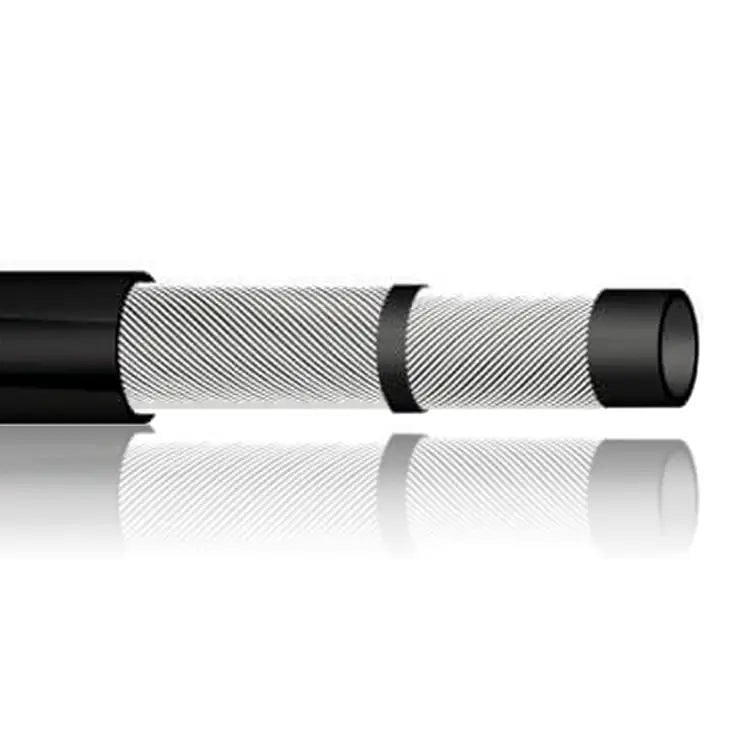

Construction

• Tube — Black nitrile rubber, conductive.
• Reinforcement — High tensile textile braid.
• Cover — Black rubber, abrasion and weather resistant.

Applications

• Compressed air lines — workshop, factory, and industrial.
• Water transfer and washdown.
• Oil and petroleum product delivery — conductive tube suits fuel handling applications.
• General industrial fluid transfer.

General Specifications

• Service temperature range: -40°C to +80°C
• Maximum working pressure: 10 bar
• Safety factor: 4:1

Technical data subject to change without notice.
