Spring Flex Hose

SKU: SPR016E
{{ wishlistButtonText }}
Size (ID)

Product details

  • SKU SPR016E

Product Main Features

Agricultural use

Agricultural icon

Industrial use

Industrial use icon

Transport of water

Transport of water icon

Non toxic

Non toxic icon

Transport chemicals

Transport chemicals icon

Food related use

Food related use icon

Ca/Pb/Ba Free

Ca/Pb/Ba Free icon

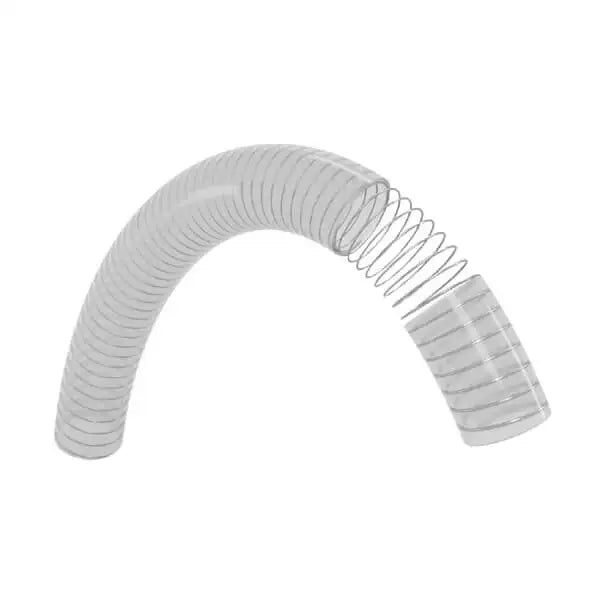

Flexible, transparent tube made of non toxic food use compound with reinforcing steel spiral.

Features

  • Non-toxic and suitable for food use
  • Tube with encased galvanised steel rigid spiral reinforcement
  • The inside wall of the tube is smooth thus preventing the build up of sediment and facilitating tube sterilisation
  • Extremely flexible and tight curvature radius due to reduced spiral passage
  • Highly resistant to absolute suction vacuums
  • Resists atmospheric agents and various chemical products
  • Primarily designed as suction hose – not recommended for constant max working pressure applications
  • Recommended temperature for use: -10°C to 60°C.

Uses

  • For transfer of many fluids such as chemicals, liquid alcohols up to 20% vol, low fat content liquids, etc
  • Vacuum pumps
  • Installations requiring a lot of flexibility
  • Agricultural machinery
  • Riser connection hoses for well point dewatering
  • Cleaning machinery (sludge, sediment, mud, etc)



SKU Ø I.D. (mm) WALL THICKNESS (mm) VACUUM MH2O WORK PRESSURE (bar) SAFETY FACTOR
CURVATURE RADIUS (mm)
SPR016E 16 3.1 9 6 3:1 40
SPR019E 19 3.5 9 5 3:1 40
SPR025E 25 4 9 5 3:1 50
SPR032E 32 4.2 9 4 3:1 64
SPR038E 38 4.5 9 4 3:1 76
SPR051E 51 5.4 9 3 3:1 100
SPR063E 63 6.1 9 3 3:1 125
SPR076E 76 6.5 9 2 3:1 150
SPR102E 102 7 9 2 3:1 200
