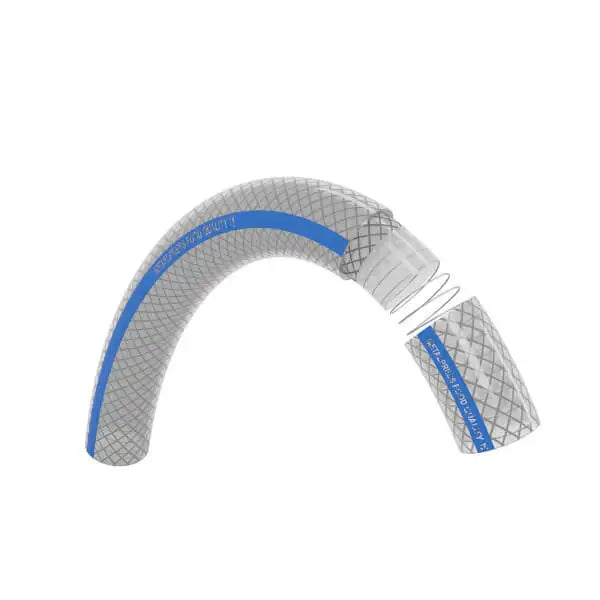

Transparent Food S&D Hose

Transparent Food S&D Hose is a heavy duty food-grade transparent PVC hose with galvanised steel spiral and textile braid — for food, beverage, and chemical suction and delivery requiring a large-bore clear hose

Transparent Food S&D Hose is a transparent food-grade PVC hose reinforced with an encased galvanised steel rigid spiral and textile braid. This combination gives it both excellent vacuum suction resistance and significant working pressure — 14 bar at 38mm and 12 bar at 51mm. Highly flexible with a tight curvature radius for its bore size. Handles liquid alcohols up to 50% vol and a range of chemical and food products. Available in 38mm (1-1/2") and 51mm (2"). For smaller bore sizes, see the Spring Flex Hose.

Features

• Galvanised steel spiral and textile braid reinforcement — resists both high vacuum and high working pressure in the same hose.
• Transparent construction — visual monitoring of flow at all times.
• Food-grade PVC — non-toxic, suitable for food and beverage contact.
• Handles liquid alcohols up to 50% vol — suited to winery and brewery applications.
• Smooth internal wall — prevents sediment buildup and allows easy cleaning.
• Highly flexible with tight bend radius for a large-bore spiral hose.

Construction

• Tube — Transparent food-grade PVC, smooth bore.
• Reinforcement — Encased galvanised steel rigid spiral and textile braid.
• Cover — Transparent PVC.

Applications

• Food and beverage suction and delivery — wine, beer, must, juice, liquid alcohols up to 50% vol, and other food liquids.
• Chemical transfer — compatible with a range of chemicals; confirm suitability before use.
• Applications requiring a large-bore transparent hose for both suction and pressure delivery.

General Specifications

• Service temperature range: -25°C to +60°C
• Safety factor: 3:1

Technical data subject to change without notice.
