Vortex Water Suction & Delivery Hose

Vortex Water Suction and Delivery Hose is a heavy duty 10 bar rubber S&D hose — built for high flow water transfer, pump suction, and civil dewatering across agricultural, construction, and mining applications

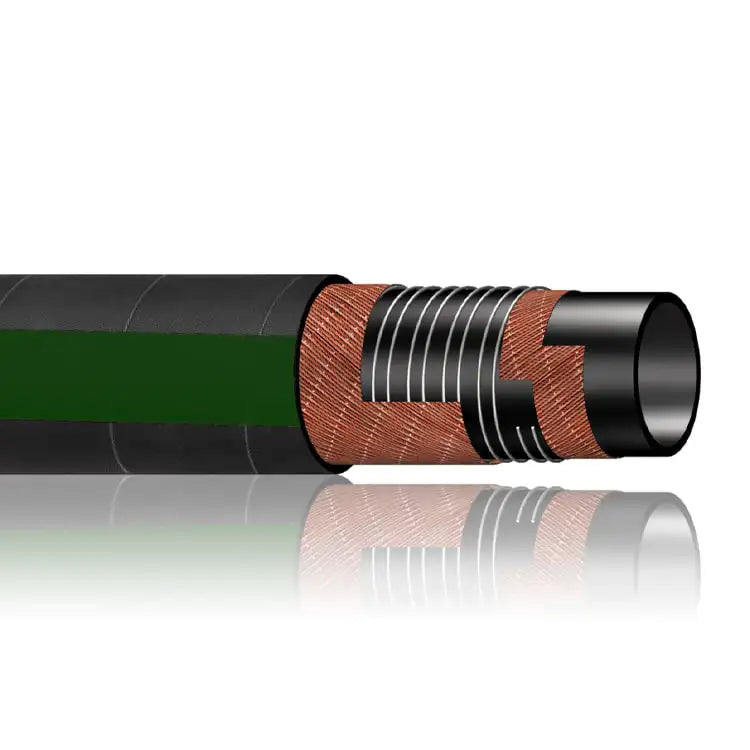

Vortex is a synthetic EPDM rubber suction and delivery hose with an embedded steel wire helix for bore support under vacuum, and high tensile textile braids for pressure resistance. Rated to 10 bar, it handles both suction and high-pressure delivery — suitable as a primary pump hose across a wide range of agricultural, civil, construction, and mining water transfer applications. Available in 51mm to 203mm (2" to 8").

Features

• Synthetic EPDM rubber construction — tough, UV resistant, and highly resistant to abrasion from rough ground and site conditions.
• Embedded steel wire helix — maintains bore shape under vacuum, preventing hose collapse on suction.
• High tensile textile braid reinforcement — 10 bar working pressure rating suitable for pump delivery as well as suction.
• 3:1 safety factor.

Construction

• Tube — Black smooth EPDM conductive rubber.
• Reinforcement — High tensile textile plies with embedded steel wire helix.
• Cover — Black smooth rubber, abrasion and weather resistant.

Applications

• Pump suction and discharge — agricultural irrigation, construction dewatering, and civil water transfer.
• Mining and quarry water transfer — abrasion-resistant cover suits harsh site conditions.
• High flow dewatering on construction and civil sites.
• General high volume water transfer across industrial and agricultural applications.

General Specifications

• Service temperature range: -30°C to +100°C
• Maximum working pressure: 10 bar (all sizes)
• Safety factor: 3:1

Technical data subject to change without notice.
