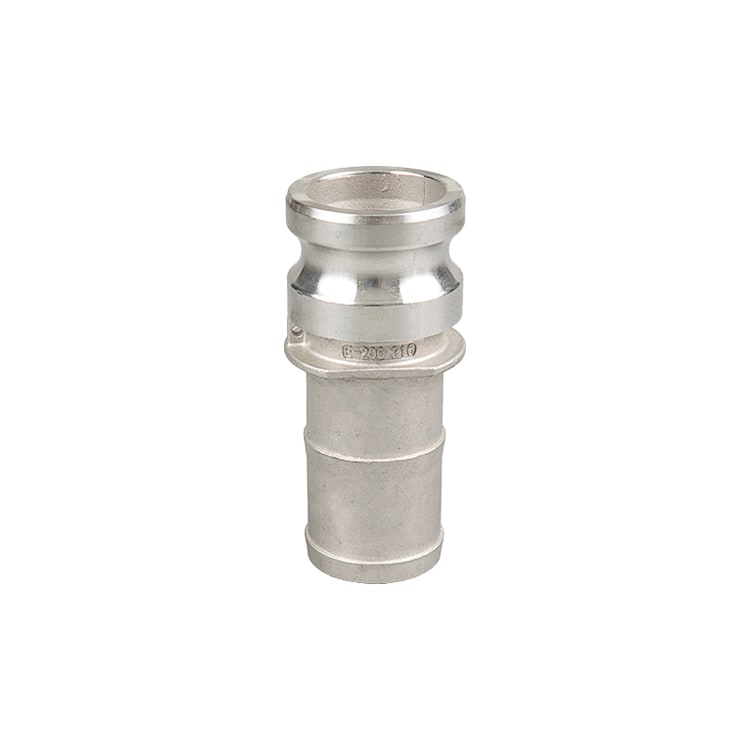

Type E Stainless Steel Camlock

Type E Stainless Steel Camlock is a 316 stainless steel male camlock coupler with a hosetail — the premium option for attaching a male camlock end directly to a hose in food, marine, and chemical environments

The Type E 316 stainless steel camlock is a male camlock coupler with a hosetail — the premium option for attaching a male camlock end directly to a hose. The hosetail inserts into the bore of the hose and is secured with a hose clamp or T-bolt clamp, giving a direct connection from hose to male camlock without the need for an intermediate BSP thread.

316 stainless steel camlocks provide superior corrosion resistance to aluminium and polypropylene — suited to food, dairy, marine, and chemical processing applications where hygiene, longevity, or aggressive chemical environments are a factor. Available in 19mm to 152mm (3/4" to 6").

Also available in aluminium and polypropylene for general duty and chemical applications.

Specification

• Material — 316 stainless steel.
• Seals — No internal seal (male camlock; seal is in the female half).
• Internal hosetail — sized to suit internal hose bore.
• Sizes — 19mm to 152mm (3/4" to 6").
• Compatible with all standard camlock female couplings in the same size.
