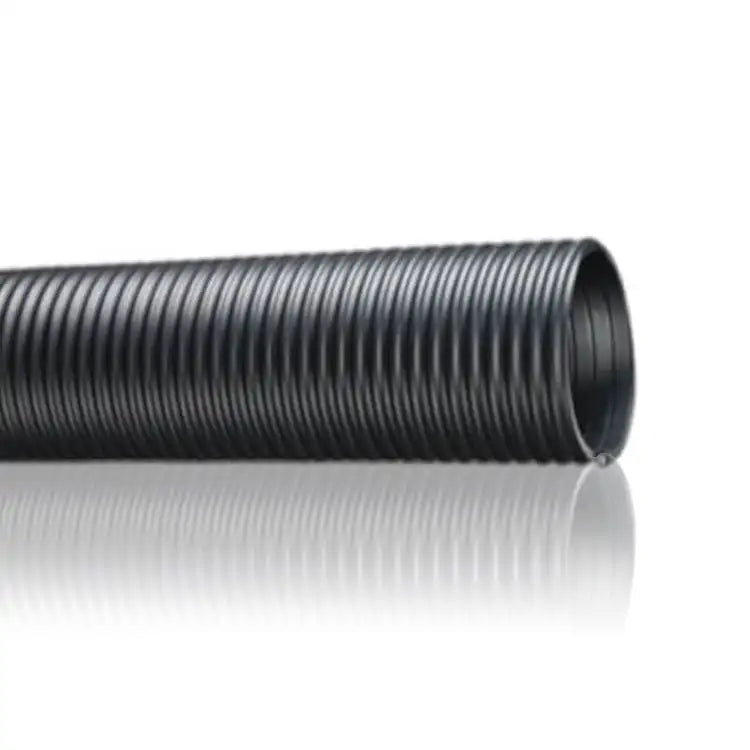

Tigerflex Static Dissipative Suction

Tigerflex Static Dissipative Suction is a lightweight, flexible SBR rubber vacuum hose with a static dissipative tube — for grain handling, dry bulk material, and industrial vacuum applications where static control is required

Tigerflex TR1 is a static dissipative SBR rubber suction hose formulated to prevent the buildup of static electricity during high-velocity dry material handling — a safety requirement in grain, flour, and granulated product applications where static discharge creates a fire or explosion risk. Cold Flex construction keeps it flexible in cold conditions. Available in 102mm (4”) and 127mm (5”).

Features

• SBR static dissipative rubber tube — continuously dissipates static electricity during high-velocity dry material handling.
• Rigid PVC helix — maintains bore shape under vacuum.
• Convoluted cover design — provides increased flexibility relative to smooth-cover hoses.
• Cold Flex construction — hose remains flexible at sub-zero temperatures, suited to colder regions of NZ.
• Made in USA.

Construction

• Tube — SBR static dissipative rubber.
• Reinforcement — Rigid PVC helix.
• Cover — Convoluted design for high flexibility.

Applications

• Grain handling and seed transfer — where static discharge is a fire or explosion risk.
• Dry fertiliser and granulated product handling.
• Agricultural liquid fertiliser handling.
• Fly ash collection in industrial settings.
• Shot blast recovery.
• Industrial vacuum equipment for dry abrasive materials.
• Hydro excavation suction and material chutes.
• Sewer vacuum truck applications.

Primarily a suction hose — not designed for sustained pressure delivery at rated working pressure.

General Specifications

• Service temperature range: -40°C to +65°C
• Safety factor: 3:1

Technical data subject to change without notice.
