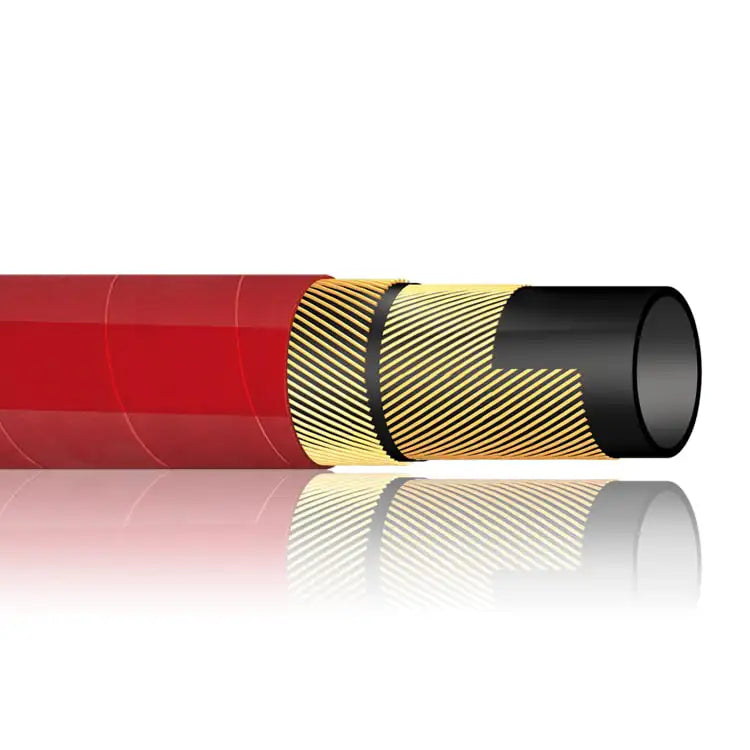

Steel Steam Hose - 210°C

Steel Steam Hose is a rubber steam hose rated to 18 bar at 210°C — designed for saturated steam, hot water, and superheated steam applications in industrial settings

Steel Steam Hose is a high-pressure rubber steam hose with a black smooth rubber tube specifically formulated to resist cracking and hardening under high-temperature steam service. Rated for saturated steam up to 210°C and peaks of superheated steam up to 232°C at 18 bar. The red cover contains an embedded high tensile steel wire braid and is pin-pricked to evacuate trapped gases. 10:1 safety factor. The hose should be fully drained after use. Available in 13mm to 38mm (1/2" to 1-1/2").

Features

• Black smooth rubber tube — specially formulated to resist cracking and hardening under sustained high-temperature steam service.
• Red smooth rubber cover with embedded steel wire braid — abrasion, oil, ozone, and weather resistant. Pin-pricked to allow trapped gas evacuation.
• Rated for saturated steam up to 210°C and peak superheated steam up to 232°C at 18 bar.
• 10:1 safety factor — a higher safety margin than standard industrial hoses, reflecting the safety-critical nature of steam service.
• Drain after use — steam condensate retained in the hose will degrade the tube over time. Always drain and store the hose dry after each use.

Construction

• Tube — Black smooth rubber, high temperature steam resistant.
• Reinforcement — High tensile steel wire braid.
• Cover — Red smooth rubber, pin-pricked, abrasion and oil resistant.

Applications

• Saturated steam transfer in industrial plant and processing environments.
• Hot water transfer at elevated pressure and temperature.
• Steam cleaning and sterilisation applications.

Safety note: Steam hose must be rated for the operating pressure and temperature of the system. Do not use this hose beyond its rated working conditions. Drain and store dry after each use to extend service life. Contact United Flexible if you are unsure of the correct specification for your application.

General Specifications

• Service temperature range: -40°C to +210°C (peaks to +232°C)
• Maximum working pressure: 18 bar
• Safety factor: 10:1

Technical data subject to change without notice.
