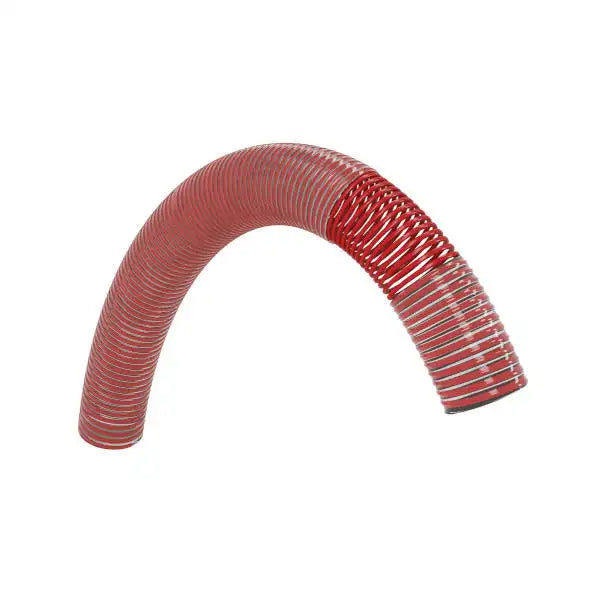

Red Heliflex Hose

Red Heliflex is a food-rated PVC suction and delivery hose — suited to brewery, winery, dairy, and food product transfer applications

Red Heliflex is a food-rated PVC suction and delivery hose with a rigid internal spiral and smooth inner wall. Non-toxic and approved for food contact use, it is widely used for brewery and winery transfer of beer, wine, and must, as well as dairy and food processing applications. Handles liquid alcohols up to 50% vol. The smooth internal wall prevents sediment buildup and makes sterilisation straightforward. Available in 25mm to 102mm (1" to 4"). For general water and non-food applications, the Green Heliflex is a more economical choice.

Features

• Non-toxic, food-rated PVC construction — suitable for food contact use, except fatty foods.
• Handles liquid alcohols up to 50% vol — suited to brewery and winery applications.
• Rigid internal spiral — maintains bore shape under vacuum and suction load.
• Smooth internal wall — prevents sediment buildup and facilitates sterilisation.
• Resistant to weathering and chemical products.
• Primarily a suction hose — not recommended for sustained delivery at rated working pressure.

Construction

• Tube — Red food-rated PVC.
• Reinforcement — Rigid internal PVC spiral.
• Cover — Red PVC, UV and weather resistant.

Applications

• Brewery and winery — suction and low pressure delivery of beer, wine, must, and liquid alcohols up to 50% vol.
• Dairy and food processing — suction and delivery of non-fatty food products.
• Potable water transfer.
• General food and beverage liquid handling where food-rated PVC is appropriate.

General Specifications

• Service temperature range: -10°C to +60°C
• Safety factor: 3:1

Technical data subject to change without notice.
