Oroflex-20 Rubber Layflat Hose - Drag Rated
Couldn't load pickup availability
Refresh
Product details
- SKU PBLFT019
Product Main Features
Agricultural use
Industrial use
Transport of water
High temperatures
High pressure
Construction use
Oroflex-20 Rubber Layflat Hose — Drag Rated is a premium heavy duty rubber layflat hose with very high pressure ratings — designed for umbilical dairy effluent spreading, construction site air supply, and demanding dewatering applications
Oroflex-20 is a premium synthetic textile-reinforced rubber layflat hose with dual working pressure ratings — separate ratings for liquid and air service. In small sizes, liquid working pressures reach 33–38 bar. Its heavy duty rubber construction, high tensile strength, and drag-rated design make it the hose of choice for umbilical effluent spreading systems, where the hose is continuously dragged across paddocks. Also used as a construction site air supply hose and for dewatering in quarrying and mining. Available in 19mm to 152mm (3/4” to 6”). For general duty rubber layflat, see the Oroflex-10 Rubber Layflat Hose.
Features
- Drag rated — construction and tensile strength rated for continuous dragging across rough ground in effluent spreading and site applications.
- Very high working pressure — up to 38 bar liquid in small sizes; see table for all sizes.
- Dual pressure rating — separate liquid and air pressure ratings; larger sizes are for liquid service only.
- Heavy duty synthetic textile reinforcement — very high tensile strength.

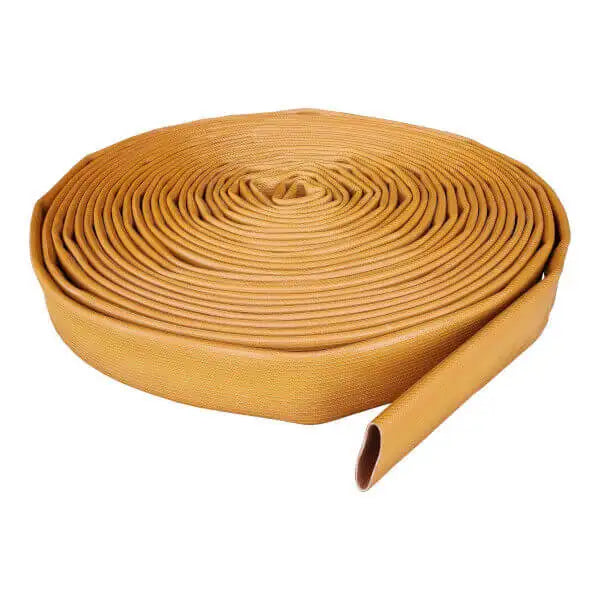

- Flat when empty — easy to roll and store.
- Flexible rubber construction — handles cold conditions better than PVC layflat.

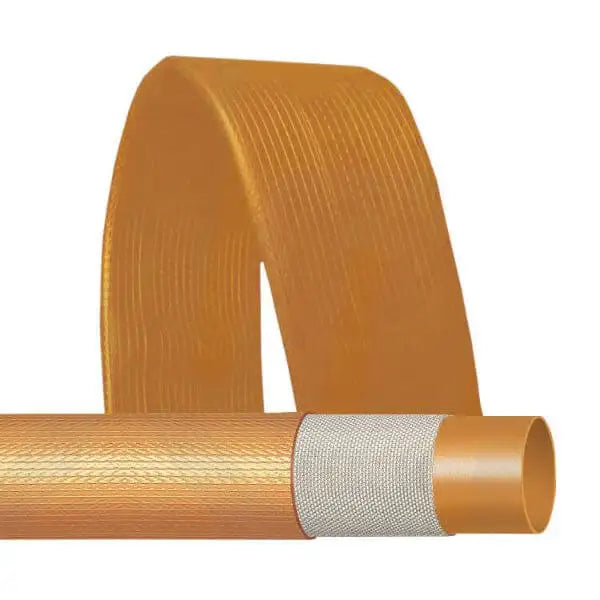

Construction
- Tube — Synthetic rubber.
- Reinforcement — High tensile synthetic textile.
- Cover — Synthetic rubber, abrasion resistant and drag rated.
Applications
- Umbilical dairy effluent spreading — primary application; drag-rated construction suits continuous paddock dragging in effluent irrigation systems.
- Construction site compressed air supply — small sizes rated for air service.
- Quarry and mining dewatering at higher pressures.
- Water and slurry transfer in demanding industrial environments.
General Specifications
- Service temperature range: -30°C to +80°C
| SKU | I.D. (mm) | I.D. (in) | O.D. (mm) | Max Working Pressure — Liquid (bar) | Max Working Pressure — Air (bar) |
|---|---|---|---|---|---|
| PBLFT019 | 19 | 3/4" | 23 | 33 | 25 |
| PBLFT025 | 25 | 1" | 29 | 38 | 29 |
| PBLFT038 | 38 | 1-1/2" | 43.6 | 21 | 16 |
| PBLFT051 | 51 | 2" | 57 | 21 | 16 |
| PBLFT076 | 76 | 3" | 82 | 18 | 11 |
| PBLFT102 | 102 | 4" | 108.2 | 21 | — |
| PBLFT127 | 127 | 5" | 133.4 | 17 | — |
| PBLFT152 | 152 | 6" | 160 | 20 | — |
Technical data subject to change without notice. Contact United Flexible for availability on sizes not shown as variants.
