Material Handling S&D Hose - Boomer

{{ wishlistButtonText }}
Size (ID)

Product details


Product Main Features

Industrial use

Industrial use icon

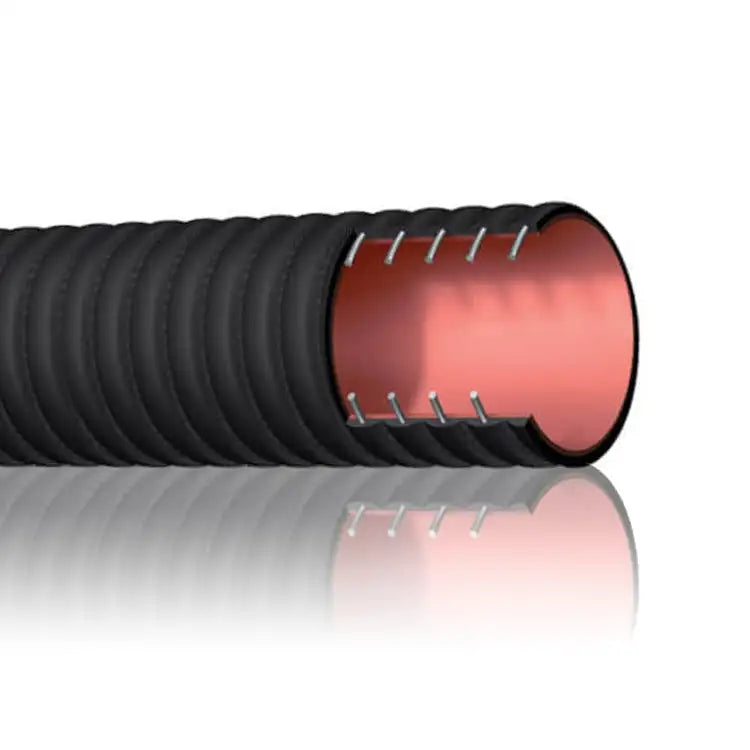

The BOOMER™ is a heavy duty rubber overhead boom hose designed for the industrial vacuum truck industry


  • Abrasion resistant gum rubber tube inner designed for wet or dry applications where severe abrasion is a factor.
  • The soft gum rubber tube absorbs impacts from sharp debris instead of allowing it to dig in which destroys the internal properties of the hose. This feature enables superior wear resistance allowing this hose to long outlast others in abrasive applications.
  • Steel grounding wire helps prevent the build-up of static and helps to keep material flowing smoothly.
  • Made from Cold Flex materials – hose remains flexible in sub-zero temperatures.
  • Service Temperatures: -40°C to 100°C
  • 3:1 Safety Factor
  • Premium quality


  • Tube - 1/4" thick red gum rubber tube for abrasion-resistance.
  • Reinforcement - High tensile textile fabric with embedded steel helical wire.
  • Cover - Corrugated black conductive SBR/NR blend cover for abrasion and ozone-resistance.


  • Material handling suction/discharge
  • Great hose for dry or wet abrasive materials
  • Designed for the vacuum truck industry where a rugged and durable boom hose product is needed
  • Excellent performance for drill cutting suction hose on mobile drilling rigs
  • Designed for maximum service life in highly abrasive applications

General Specifications

  • Service temperature range: -40°C to +100°C
  • Vacuum rating: Full vacuum
  • Maximum working pressure: 10 Bar (147psi)
  • Safety factor: 3:1


SKU I.D. (mm) I.D. (in) O.D. (mm) Bend Radius (mm)
TIG-BOOMER127 127 5 149 381
TIG-BOOMER152 152 6 174 610
TIG-BOOMER203 203 8 227 813
