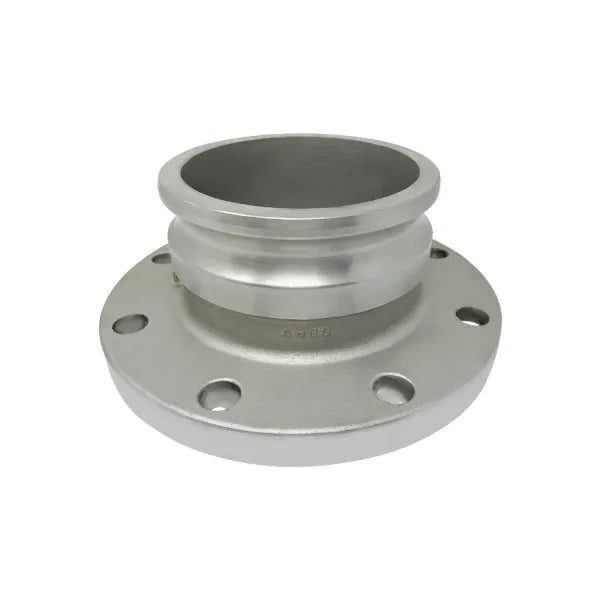

Male Aluminium Camlock to Flange Adapter

6" aluminium male camlock to 6" ANSI/ASA 150 flange adapter — used to connect a camlock hose assembly to a flanged pump, pipeline, or piece of machinery. The male camlock end connects to a standard female camlock fitting; the flange end bolts to an ANSI 150 or ASA 150 flange.

The ANSI 150 flange has a very similar bolt circle diameter to a 6" Table E flange — just 6mm difference — and with both flange types using 22mm bolt holes, 16mm bolts can be used across both standards. This makes the adapter compatible with both ANSI 150 and Table E flanged connections, giving it a significantly wider range of applications than the ANSI 150 designation alone suggests.

Features

• Aluminium construction.
• Male camlock x 6" ANSI/ASA 150 flange.
• Compatible with both ANSI 150 and 6" Table E flanged connections when used with 16mm bolts.
• Brass lever arms on the camlock end.
• Provides a quick-connect camlock interface at a flanged pipe or machinery connection.
• 6" (152mm) size only.

Contact United Flexible if you need a different size or flange standard.
