Food Grade Rubber Delivery Hose

Food Grade Rubber Delivery Hose is a smooth white EPDM rubber pressure delivery hose — for brewery, winery, dairy, and food processing applications where a premium delivery hose is required

Food Grade Rubber Delivery Hose is a white EPDM rubber delivery hose with a hygienic smooth tube, textile braid reinforcement, and red rubber cover. Similar to the Food and Beverage Rubber S&D Hose, but without the steel helix wire — making it a delivery-only hose (not designed for vacuum suction). The white EPDM tube is phthalate free and inert to the flavour, aroma, and composition of food products. Steam cleanable up to 130°C for 30 minutes. Available in 25mm to 51mm (1" to 2"). For applications requiring both suction and delivery capability, see the Food and Beverage Rubber S&D Hose.

Features

• White EPDM rubber tube — smooth, hygienic, phthalate free; designed to preserve the taste, aroma, and quality of food products conveyed.
• 10 bar working pressure — suitable for pump-fed food and beverage delivery applications.
• Steam cleanable up to 130°C for up to 30 minutes — supports in-place cleaning protocols.
• 3:1 safety factor.

Construction

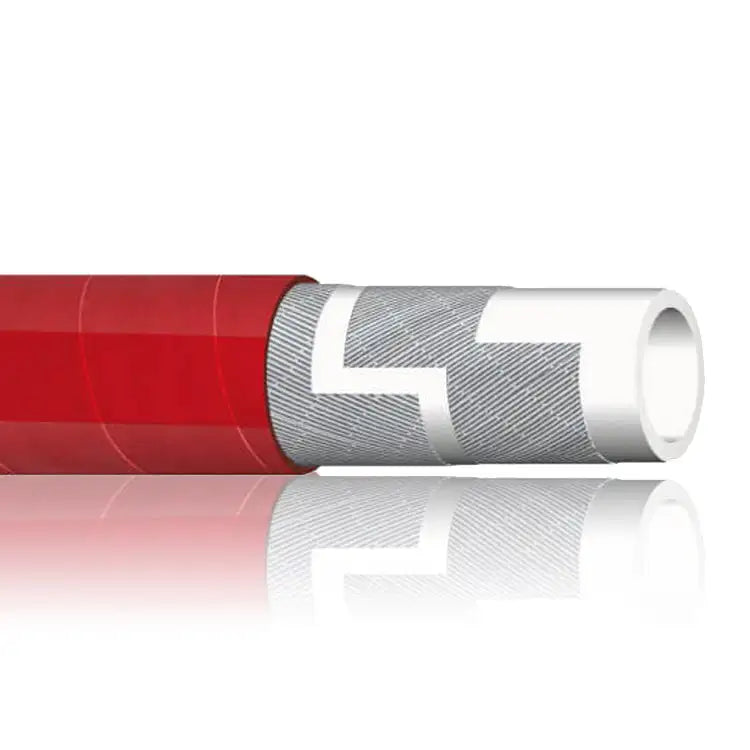

• Tube — Smooth white EPDM rubber, phthalate free.
• Reinforcement — High tensile textile plies.
• Cover — Red EPDM rubber, abrasion, ozone, and weather resistant.

Applications

• Brewery — delivery of beer, mash, and wort.
• Winery — delivery of wine and must.
• Dairy — delivery of milk, cream, and dairy products.
• Food processing — delivery of fruit juices, sauces, potable water, and non-fatty and fatty food products.

General Specifications

• Service temperature range: -30°C to +90°C; steam cleaning up to +130°C for max 30 minutes
• Maximum working pressure: 10 bar
• Safety factor: 3:1

Technical data subject to change without notice.
