Air Breathing Hose

Air Breathing Hose is a medical grade PVC hose for commercial diving and industrial air breathing applications — conforms to AS/NZS standards

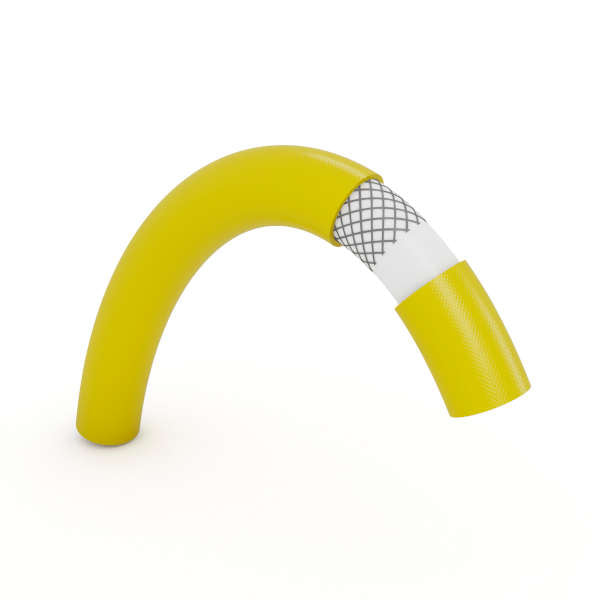

Air Breathing Hose is a specialist yellow PVC hose made from medical grade PVC with a UV-stabilised outer sheath and internal high tenacity polyester braid reinforcement. It is designed specifically for supplying breathable air to commercial divers and industrial operators via surface-supplied breathing air systems. Conforms to AS/NZS standards for diving operations and protective respiratory devices. 24 bar working pressure, 4:1 safety factor. Available in 10mm (3/8") bore — supplied in bulk roll.

Features

• Medical grade PVC inner core — safe for breathing air supply applications.
• UV-stabilised yellow outer sheath — highly visible and durable in outdoor and marine environments.
• Internal high tenacity polyester braid — 24 bar working pressure, 4:1 safety factor.
• Conforms to AS/NZS standards for diving operations and protective respiratory devices.
• Kink resistant and highly flexible.

Construction

• Tube — Medical grade PVC.
• Reinforcement — High tenacity polyester braid.
• Cover — UV-stabilised yellow PVC sheath.

Applications

• Commercial diving — surface-supplied air umbilicals for commercial and scientific diving operations.
• Industrial air breathing — supplied air systems for operators in confined spaces or hazardous environments.

Note: Ensure all breathing air hose assemblies are installed and tested by a qualified person in accordance with AS/NZS standards and relevant site safety requirements. Contact United Flexible for advice on breathing air hose assemblies.

General Specifications

• Service temperature range: -5°C to +60°C
• Maximum working pressure: 24 bar
• Safety factor: 4:1

Technical data subject to change without notice.
