Uniflow Ag-Jet Spray Hose

Uniflow Ag-Jet Spray Hose is a high pressure PVC spray hose for agricultural spraying and chemical applications — built for use on hose reels with spray guns and dragging applications

Uniflow Ag-Jet is a high-tensile multi-braid PVC spray hose designed for agricultural spraying, spot weed control, and chemical applications at high working pressures. Its high level of internal reinforcement combined with a tough outer sheath suits it to drag applications — being pulled along paddocks or through machinery. Excellent abrasion and chemical resistance. Sold in 100m rolls. Available in 8.5mm to 25mm (5/16" to 1").

Features

• High level of internal reinforcement — high working pressure rating (40 bar in small sizes) suitable for demanding pump and spraying systems.
• Tough outer sheath — excellent abrasion resistance suited to dragging in paddock conditions.
• Highly resistant to agricultural chemicals, fertilisers, and atmospheric agents.
• Flexible and lightweight — suited to hose reel applications.
• Sold in 100m rolls.

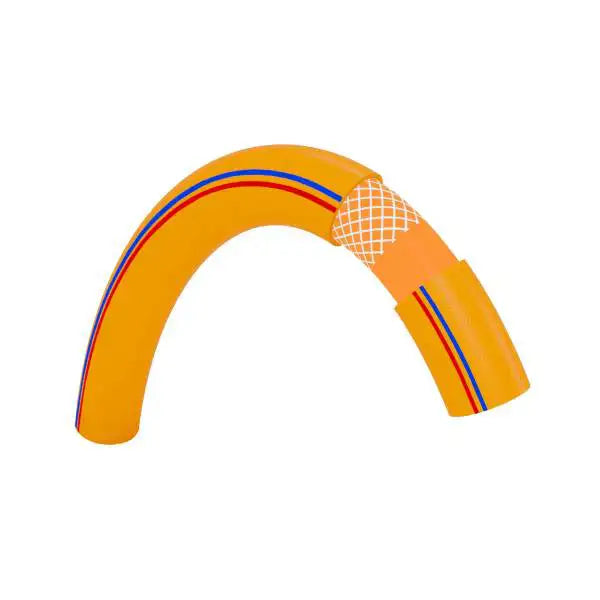

Construction

• Tube — PVC, chemical resistant.
• Reinforcement — High tensile multi-braid textile.
• Cover — Tough PVC outer sheath, UV and abrasion resistant.

Applications

• Agricultural spot weed spraying — hose reel with spray gun, dragging applications.
• Spray system high-pressure lines — herbicide, pesticide, and fertiliser application.
• Pressurised chemical and fertiliser transfer lines.
• High pressure compressed air lines where a lightweight, flexible hose is required.

General Specifications

• Service temperature range: -10°C to +60°C
• Safety factor: 3:1
• Roll size: 100m

Technical data subject to change without notice.
